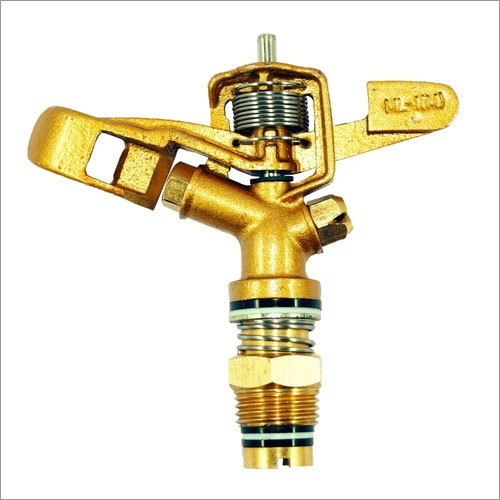

Impact Sprinklers (ML-1)

Next > >

Send Inquiry

Product Code : ML-1

Product Description

1/2 inch Full Circle (25 Degree Trajectory Angle)

Leveraging on our vast industry experience, we are offering our clients a finest quality range of Sprinkler Trajectory Angle 25 Degree. This product is used to sprinkle water on various crops, flowers, vegetable in order to provide them proper growth. Manufactured and designed under the guidance of our adept professionals using superior quality raw material and latest technology, offered sprinkler is highly used in the various areas like agricultural, farming and irrigation sectors. We provide this Sprinkler Trajectory Angle 25 Degree at economical price range. All Overhead Irrigation, Hand lines, Solid Sets or Mechanically Moved Systems.

Features

Ruggedness.
High performance.
Less maintenance.
Durability, Heavy Duty, All Brass Construction.
Corrosion resistant Stainless Steel spring and shaft.
Chemically resistant PTFE washers
Dual nozzle.

Technical Specifications.

Body trajectory: 25 Degrees
1/2″ Male pipe connection.
Pressure: 2.0 – 3.0 Bars.
Flow: 1.02 – 1.74 m3/h (17.0 – 29.0 Lpm)
Maximum spacing: 19 Mts.
Weight: 205 grams.

Specification Data Sheet :

Main Nozzle mm	Spreader Nozzle mm	Pressure at Sprinkler Kpa	Diameter of Coverage m	Discharge of Coverage m³ / h	Spacing m	Sprinkled Area	Water Application Rate m/h
5.1	3.1	200	23	1.81	12 x 12	144	12.57
5.1	3.1	250	24	2.03	12 x 12	144	14.10
5.1	3.1	300	24.5	2.20	12 x 12	144	15.28
